Contra™ LED Display (HL-IF Series)
Hive System Inc.'s FCOB LED display panel, HL-F Series, is a display equipment optimized for the control system that can be customized in various sizes and shapes in any indoor environment and provides vivid colors and clear image quality.
- Product
Features - Product
Specifications
01
Reliable, durable display

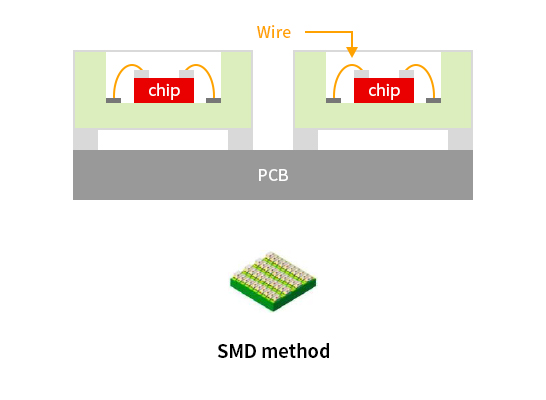

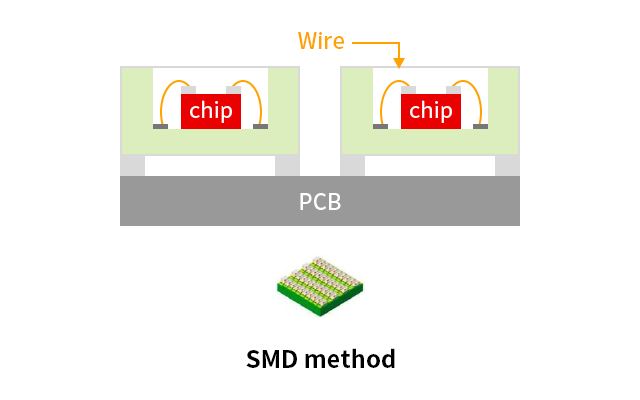

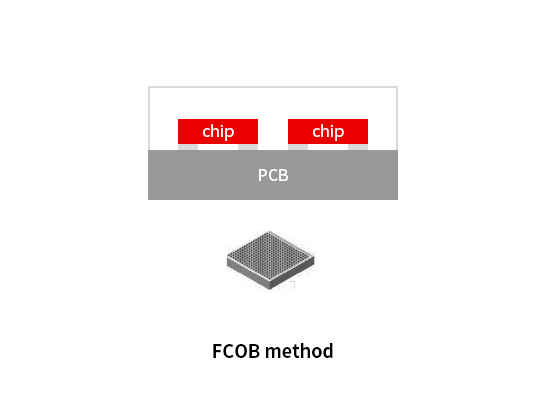

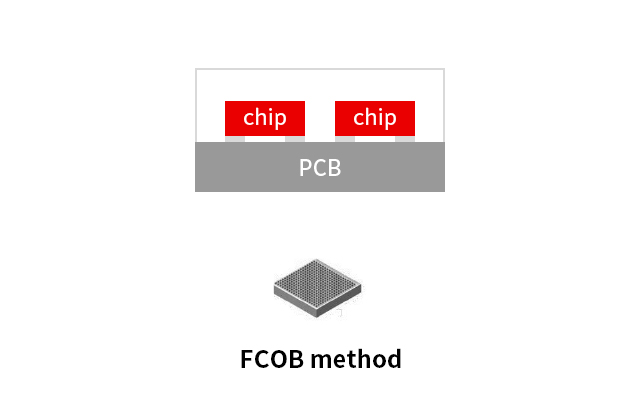

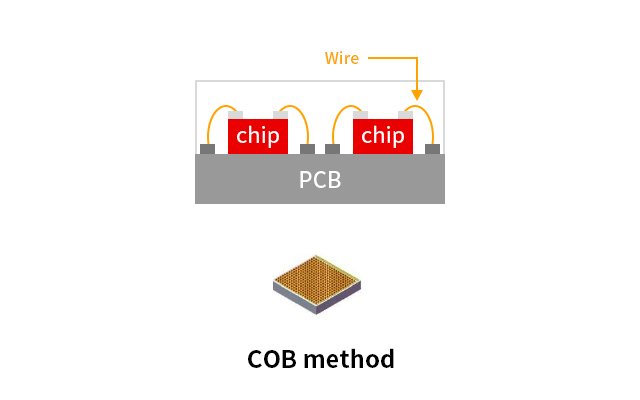

Compared to COB and SMD, LEDs are fixed on the board without using wires, resulting in low LED failure rate, extended lifespan, and low maintenance cost
High signal direct ratio and consistencydue to miniaturization, low color change even when illuminated by different light sources, and excellent color reproduction (easy to implement P1.2mm or less)
Low thermal resistance and power consumption, better light output, easy to manage, and low moiré phenomenon
02
Best viewing angle, best image quality
Various pixel pitches ranging from P0.7㎜ to P1.8㎜ are available to customize the screen and resolution to meet customer needs
600~800 nit brightness and wide viewing angles of 160º vertical and 140º horizontal provide clear image quality
03

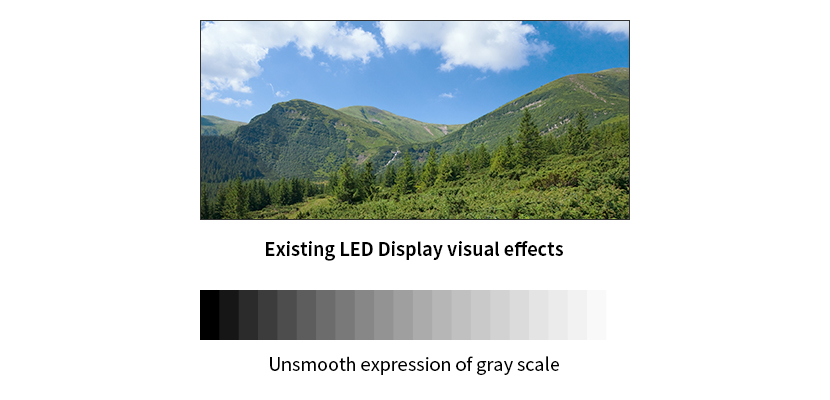

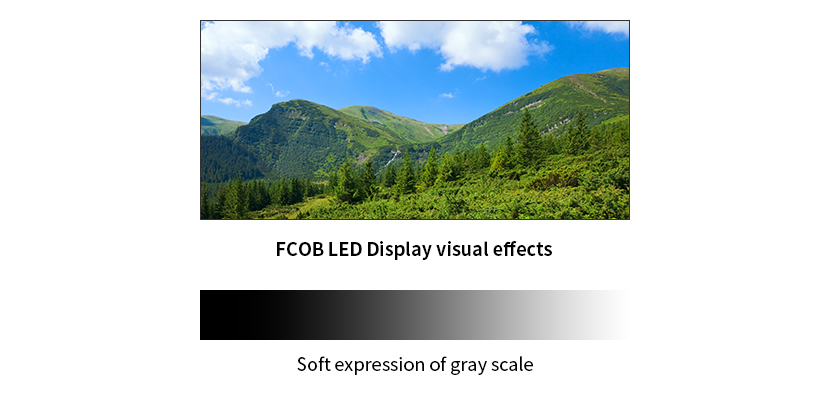

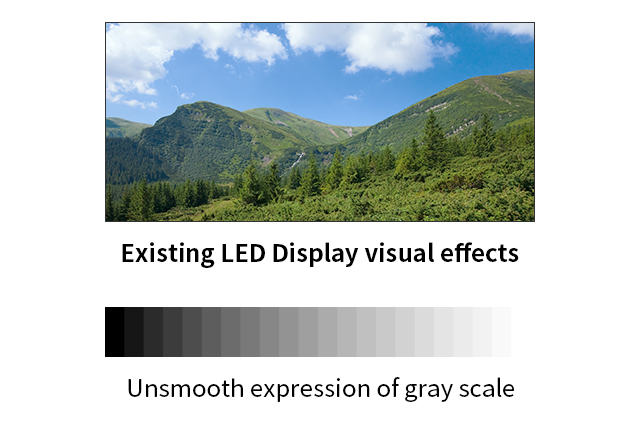

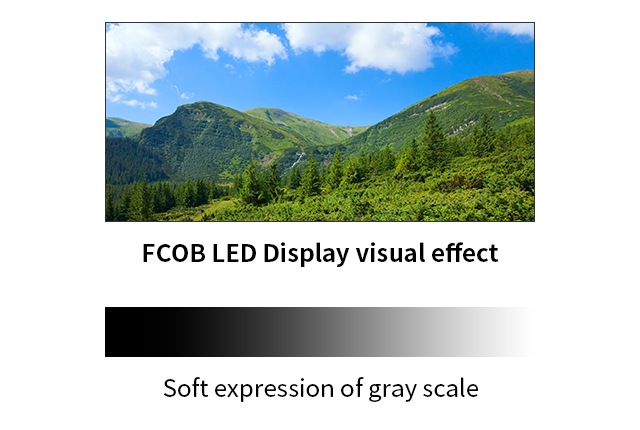

Clear and high-quality image display
Matte type coating technology is applied to eliminate color differences between modules, and excellent expression of black yarn for excellent color purity and wide color gamut
Less glare than conventional LED displays, and high-quality screen with excellent contrast ratio
04
Excellent durability
Thanks to the surface protection technology, HL-IF Series shows excellent stability with long-lasting quality
Waterproof, dustproof, anti-static, anti-collision, anti-scratch
According to the impact test, it was not damaged by a large impact of more than 10kg, which is about 5 times more than the impact resistance of SMD
05
Easy maintenance and cleaning management

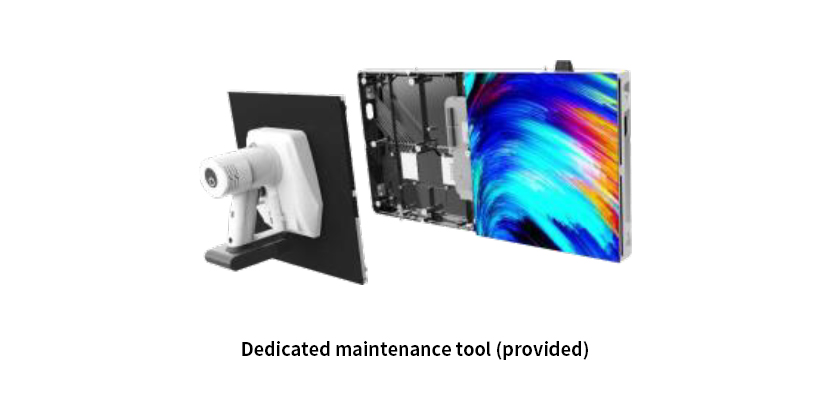

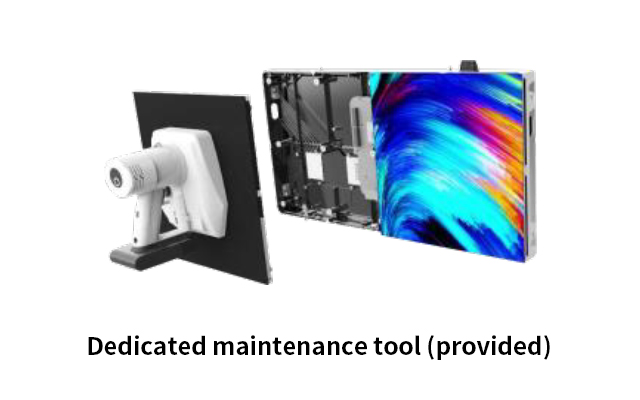

The front removable module allows users and operators to easily replace and repair with spare parts using a dedicated maintenance tool (air suction type)

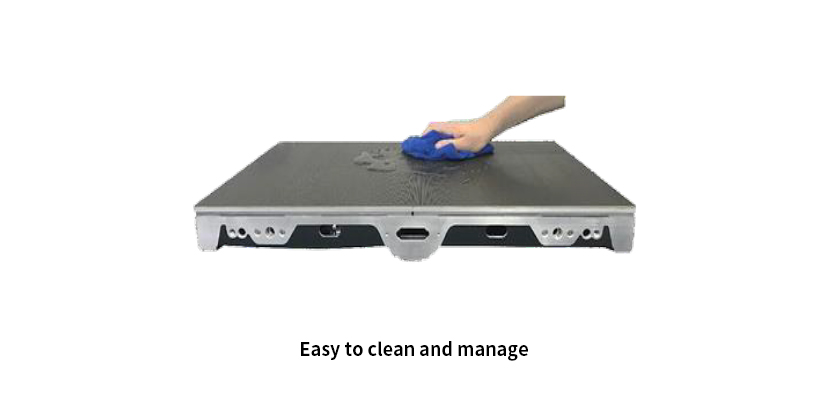

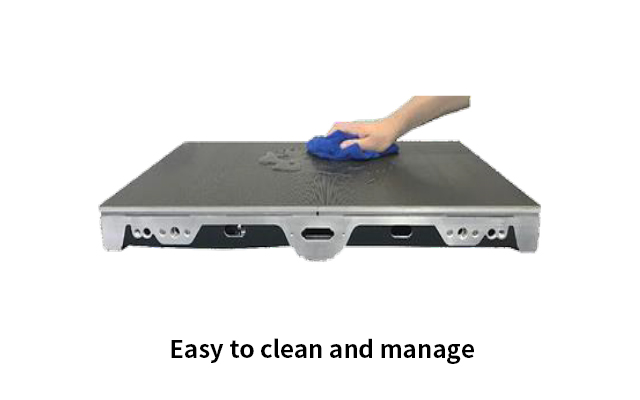

Easy to manage by wiping off contamination and moisture with a soft cloth
06

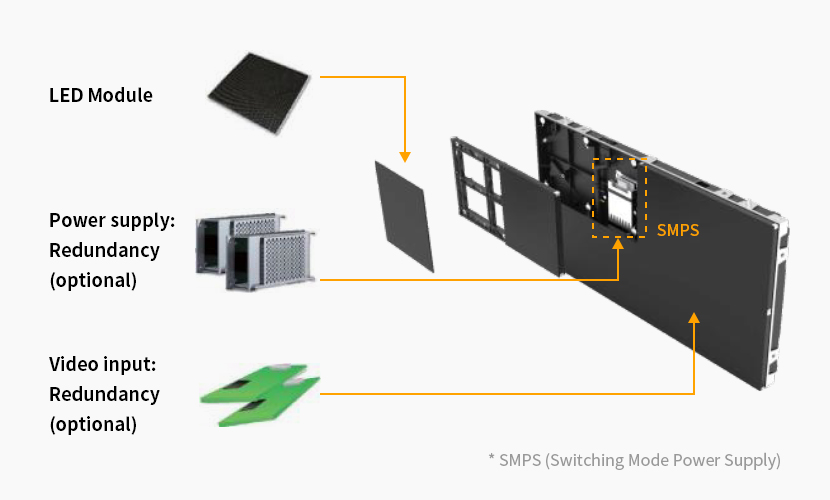

Outstanding durability
FCOB LED Module is applied to secure display durability
Redundancy of power supply and video input ensures uninterrupted operation 24 hours a day, 365 days a year (optional)
Product usage
-
Situation control room
-
Video conference room
-
Commercial media board
-
Broadcasting studio
Specification
| Model Name |
HL -IF07 |
HL -IF09 |
HL -IF12 |
HL -IF15 |
HL -IF18 |
| Pixel Pitch |
0.78mm | 0.93mm | 1.25mm | 1.56mm | 1.87mm |
| LED Device |
1R1G1B (Flip chip) | ||||
| LED Type |
FCOB (Flip Chip On Board) | ||||
| Cabinet Resolution (W*H) |
768 * 432 pixel |
640 * 360 pixel |
480 * 270 pixel |
384 * 216 pixel |
320 * 180 pixel |
| Cabinet Size (W*H*D) |
600m x 337.5mm x 35mm |
||||
| Cabinet Material |
Die-casting Aluminum |
||||
| Screen Type |
Glossy / Satin / Matte |
||||
| Brightness (Nit) |
650 nit/㎡ | ||||
| Contrast Ratio | 15,000 : 1 | ||||
| Frame Rate |
60㎐ | ||||
| Refresh rate |
3,840㎐ | ||||
| Gray Scale | > 13bit | ||||
| Viewing Angle (Horizontal/ Vertical) |
160/60° | ||||
| Input Voltage |
AC 100-240V (50-60㎐) |
||||
| Color Temperature |
3000K ~ 10,000K |
||||
| Operating Temperature |
-10°C ~ +40°C |
||||
| Dust Protection |
IP 5 (Front) | ||||
| Maintenance | Front (Front) | ||||
